Lets learn about creating Windows Phone Projects
Visual Studio 2010
Visual Studio is an “Integrated Development Environment” for creating programs
Edit program source
Add and manage program resources
Build, deploy and debug an application
It can be used for multiple platforms and languages and can also be customized by plug-ins for the different target platforms
Windows Phone on Visual Studio
Create the Windows Phone Solution
Edit the program source files
Add and manage program resources
Build and run the solution
Debug the solution on emulator or device
Manage the properties of deployment in marketplace.
Visual Studio Project and Solutions
A .NET Program is made up of assemblies
An assembly is a library file(.dll) or an executable (.exe) and it contains compiled code and resources (e.g. images and sounds) along with a manifest.
The .exe file also contains an entry point (Main)
A Visual Studio solution project describes the content of a single assembly
A Visual Studio solution is made up of number of projects and at least one of them has an entry point where a program can start
A Visual Studio Solution is an XML file that contains reference to the project file that make up solution.
Each project contains resources and code which contains single project can be shared amongst multiple solutions also a library assembly can be used in the library.
New projects and solutions are created from templates installed in Visual Studio
Additional templates can be installed so that the tool can be used to target different platforms
These templates give you the basic structure of the type of program you are trying to make and also add the relevant references and saves you a lot of effort.
Making a Silverlight Application
Silverlight apps are generally line of business apps which are used to do business with and there is a template that helps us create a Windows Phone Silverlight application.
Very easy to create rich user interface.
This creates the initial page for our application and configures Visual Studio to target the Windows Phone platform.
If we want to create additional pages and add resources to the solution we can do this using Visual Studio.
Note – Windows Phone Mango is called 7.5 but the tools and the OS is called 7.1. The reason being the development team started pretty early and named the OS as 7.1 (after 7.0) but when the marketing team decided that they would call the whole package as 7.5
XNA Game Projects
Could be developed in a similar way to a Silverlight app but the starting template needs to be different.
The solution structure will be different though.
The content project contains all the elements of the game, assets, texts,etc
If you have not developed an XNA games before then i would like tell you that
An XNA game will not be like a silverlight app in which you press a button but in an XNA game the stuff will be repeated 30 times a second.
Its pain free and very well packaged.
XNA is great for writing games
Makes good use of graphics acceleration
Can be tedious to create UI behaviors
Combining Silverlight & XNA
It is possible for the silverlight form containing XNA content to hold silverlight components and this makes it possible to overlay Silverlight UI elements on top of an XNA display.
This makes it easier to build interfaces to XNA game.
Such a project will contain at least three projects
SilverXNA – It is the project that actually does the running
SilverXNALib – The libraries
SilverXNALibContent – XNA library content which will have assets, etc
When we make a silverlight and XNA combined program then we will have a page that will take us from the silverlight to XNA. So shown in the image below we will have a single button that will navigate to the game page on clicking.
Also this button click starts the XNA game engine.
The XNA page as shown below contains version of
Draw and Update methods that are called to run the game within the silverlight
Multiple Project Solutions
A VS 2010 solution can have
PC version of XNA game
XBOX version of a game
Windows Phone Version of a game
They can also share code libraries which are also part of solution
Many projects can share the output from a single project.
Running Applications on Windows Phone Platform
Windows Phone Device Basics
To connect from a Windows PC to Windows Phone Device we need the Zune software. this could also
Before we deploy our application on Windows Phone we need to register it as a developer device. This registration is a one time process and the registered developers can register up to 3 devices (but registered students can register only one device).
Now you need to connect the phone to your PC and from the drop down as shown below we can select the Windows Phone 7 Device
The debugging method and development environment is the same for both the WP devices and Emulator.
The problems that you might face while deployment might be
If the phone is displaying lock screen deployment will fail.
Applications that use media will not work correctly if they are deployed when the Zune software is running. To solve this problem we can use “Windows Phone Desktop Pass- Through” program to connect instead of Zune. It is available with SDK.
Once the application is deployed it will be stored on the device for later use but remember at a time you can have only 10 of your own applications on the phone at any time. You can anyways send the compiled version of your application to other registered developers for them to use on their developer devices.
Emulator is available with Windows Phone SDK.
It runs as a program on the windows PC.
It has the same software as Windows Phone device but is targeted to run on Windows PC platform.
Has a browser
Will provide phone behaviors for things like placing calls and sending SMS. Also it has some entries in phonebook
Contains emulation of windows phone camera, GPS and motion sensors
Has the ability to capture screenshots of programs running on the phone.
If you are developing a game then it is recommended to run it on the phone as the performance is something which is not properly tested on emulator as it running in Windows environment.
You can use a PC mouse to touch on the screen.
If you have a multitouch monitor then that touch can be passed to the emulator as well.
If you want to use the PC keyboard for typing then you should use the Pause/Break key to toggle the emulator keyboard. When the Emulator keyboard is not there it will take the input from PC keyboard.
The windows Phone Emulator
Does not support Zune media playback.
Uses only only the built in browser application.
Should be used for functional testing only.
When you hover over the emulator with a PC mouse you will see an extra set of tools.
These allow you to rotate the emulator into different orientations
There are two landscape positions but only one portrait position.
The camera can also be emulated but it can take a simple photograph and return it.
Location Emulation also works now with Mango version. The location tab is shown below and you can click the location move the emulator to that position and also place pushpins to describe a route and then replay the route as well.
Windows Phones contains an accelerometer and compass that can be emulated as well for determining the position.
Also you can take screenshots in Windows Phone and the same can be emulated as well
by Abhi·Comments Off on Windows Phone 7 / Mango Background Task
So the topics we are going to cover in this post are:
Windows Phone Task Management
Multi-Tasking with Background Agents
Creating tasks in Visual Studio
File Transfer Tasks
Background Music Playback Tasks
Must have .Net and Silverlight development experience
Must have developed a windows phone apps.
Windows Phone Task management
Normally a windows phone application runs in the foreground and interacts with the screen and user of the phone
There is only one foreground application active at a time though other may be running but are not active. This ensures better battery life for the user.
A Windows Phone application can have only one background agent which can perform perodic tasks or resource intensive tasks or both.
The Agent can run when the application is not in the foreground.
The background tasks have limitations to what it can do and processor and other phone facilities. The logical reason that microsoft architect give is that if a background tasks goes out of control or does what it is not intended to do somehow it should not affect the battery life of the phone and the user user experience as well.
A background task can be used used to conatc the datbase and get the updates every half an hour or play music from a server online.
Background Agent Health Warning
There can only be limited number of background agents running at a point of time and this controlled by the oprating system.
A background agent will be started only when the operating system can give the agent processor resource.
If the phone goes to power saver mode then the background agents may stop running.
Also at any point of time the user can see the background tasks running and can manage them and choose to disable them.
So dont put any critical logic in background agent as it may not run. Its like icing on cake.
Multitasking with background agent
Agents and Tasks
The Agent is the container that is manged by the operating system and agent is the code that will run.
There are two kinds of tasks
Will run every now and then (typicallyevery 30 minutes or so).
Intended to perform a task that runs regulary and complts quickly
Phone will have of limit on how many of them can be running.
Good for location tracking tracking and polling background services.
Will run when the phone is in a postion to let them. This means it will run when
The phone is connected to mains
The phone is connected to Wi Fi
The phone is not being used (lock screen is displayed)
So if you rellay need this to run you need to made some recomendations to the user so that this resource intensive task runs successfully.
A Resource intensive agent can run upto 10 minutes.
Good for synchronization with host service, unpacking / preparing services, compressing database.
Dual Purpose Agents
An application can run both periodic and resource intensive tasks.
Can be achived though single background agent class.
When the agent start it can determine in which context it is running and behave appropriatly.
Creating tasks in visual studio
Creating an application
Lets Create a captians log application which will be a simple logging application.
Users can type log entries which are timestamped and stored in an isolated storage.
The tracking feature will be added using background agent.
The start tracking button click will fire up the background agent will be track the location of the captain and add it to the log. So the agent will update the position even when the program is not active.
Create a Windows Phone application solution and develop the foreground tasks and applications.
Add a new project to the application solution which is Windows Phone Scheduled task (VS Template). This will contain code will run when the agent is active.
Here is the solution file for the captians log which has got two projects:
Captians Log – The Windows Phone Silverlight Project which is the main application.
LocationTaskAgent – The background agent to perform the tracking.
Solutions may contain differnt projects and when the soltion is build all the assembly file outputs will be combined and sent to the phone.
Before this works we need to refernce the LocationTaskAgent Project in Captains Log
And when we do this the application manifest file adds a little bit of text to hold the description of the background agent and this is how the background agent is bound to the application. Here is the text added to the application manifest file.
So below is the code that will run when the agent wakes up so we need fill this OnInvoke method with our code that the agent will run. At the end to this code we need to call the method notify complete whcih will will notify the runtime system that it is done.
The Captains log datafile is shared between the application and agent and the first thing that the agent will do is load this datafile from the isolated storage.
Now we make use of GPS traking to find out the current loaction. So we make GeoCoordinateWatcher and start it and use it to get the location. Now before you start thinking about the performance hit this does i would like to tell you that there is a special version of this class provided for Background Agents which uses cached location data which is stored every 15 minutes.
And then agent just stores back this location to the application and goes to sleep.
Finally a notification is displayed to the user on which the user can click and go to the main application.
File transfer tasks
It is possible to create a background task to transfer files to and from application’s isolated storage.
The transfer will take place when the application is not running.
An application monitor the state of downloads and display their status
Files can be transferred from http or https hosts (ftp is not suppoerted currently)
The system maintains a queue of active transfers and services each one in turn.
Applications can query the state of active transfers.
Background Transfer Policies
Policies are :
Maximum upload file size is 5Mb
Maximum download file size over cellular (mobile phone) data : 20Mb
Maximum dowload file size over WiFi : 100Mb
These can be modified by settng the value of TransferPreferences on a particular File Transfer.
Background Transfer Namespace
The background transfer namespace is :
All the background transfer services are provided from the BackgroundTransfer namspace
Most instertingly you dont need to create additional projects to manage background transfers.
Create a Background Transfer
The following code creates a request and sets the source for transfer and it also sets the transfer method.
The following code sets the destination of the files transfer which is isolated storage of the application. Also it sets the preferences for the transfer. Now the transfer preferences can have multiple string so that you can set multiple properties.
The following code starts the transfer request by adding it to the list of active transfers. Also catches the exception if any and shows a message if it cannot proceed with the transfer.
The following code monitors the transfer by binding the methods to the events fired by the transfer request.
You can also kill the transfer by using the following code:
Windows phone appplication at any point of time can find out how many active transfers does have and as a rule of thumb you should always check the same whenever your application restarts because your transfers are still running when your application is not active. Below is the code that lets you do the same.
Windows phone app can create scheduled notifications and they are displayed when the application is running or not.
When the notification is diplayed the phone user has the option to respond to it or not. Also the notification can be liked to an application page.
The notifications can fire once or repeatedly at configurable intervals.
The notifications is maintained by phone operating system, once the application can started then it doen not have to do anything.
Lets make a simple timer application which will have two silverlight pages.
The user will set the time using the slider then preses the start timer button to create a notification.
When the notification will fire the 2nd page of the application which is egg ready page will be displayed and if the user clicks on the same then user will be taken to the application.
The sceen of the application will look something like this:
The code for the creating the reminder is as below. This code will create the reminder and then adds it as a sceduled service. The value eggTime holds the lenght of the delay and this code also sets the url of the page in application.
And before you add the reminder you need to check if its already present in the memory and if the that is the case it is removed from the memory. The code for doing that is as below:
Audio Playback Agents
It is possible to create a playback that will manage an application playlist and the mechanism is the same as for other background tasks.
The audio can be streamed or stored in application’s isolated storage.
This would also work pretty much like the things shown above in the post so i am not elaborating it.
You are free to ask any questions or leave your comments here…
by Abhi·Comments Off on Tutorial ( WP7 ) : ViewStateManger / States / Behaviours in a Windows Phone 7
Alright guys i am back with a new concept in Windows Phone 7 ( WP7 ) which is ViewStateManager. It is a really important concept for understanding visual states associated with them. If you want to create different states for your custom control then we would have to use Visual State Manager.
If you have the solution from my previous post then you can continue with it or you can download the solution here.
We will a few custom states and also learn about behaviours in this post.
Now open CompanyLocations.xaml in expression blend. Drag four TextBlock controls onto the design surface, two for the headers and two for the details and then lay them out similar to the following snapshot.
Lets add a little more fun to this. Add two more textblock rotated at 90 degree and move the location details of the screen and also increase the font size of the headings as in the image below.
Now let’s go to the top left of expression blend where we have states and lets create new state group. Click on the Add State Group button and name the state group as LocationStates. Now add two new states namely CorporateState and SatalliteState. Now your state group should look something loke the screenshot below:
Now select CorporateState to start recording for that state which you can verify by seeing the red dot at the top right of the design surface. Now this will record any changes to the state as compared to the base state. Layout the CorporateState as shown in the image below:
Layout for the SatelliteState is shown below:
Now lets switch back to the initial state and that any changes we make will affect all the states.
Now lets include behavior to bind these states to action. So now in your assets window search for GoToStateAction and drag and drop it to both the CorporateOffice and SatelliteOffice text.
Now change the name to the GoToStateAction to the appropriate statename.
[highlight]Create a simple navigation application in Windiows Phone 7 ( WP7 ) [highlight]
In a Windows Phone application it is highly probable that you will have more than one screen in your application and you will need to navigate between them. We can make use of the navigation framework for the same. This navigation will be very similar to navigating from one web page to another. This navigation framework also supports query string.
So without much talk let’s go ahead and create a simple business information application of financial company ACME and learn navigation in WP7.
Goto visual studio 2010 and create new Windows Phone Silverlight and XNA Applicationand name it NavigationExample.
Add new folder to the NavigationExample named Views and inside Views add a new folder Locations.
Now add Windows Phone Portrait Page named About and Contact in the Views folder
Similarly add Windows Phone Portrait Page named Corporate Office and Satellite office in the Locations folder.
Windows Phone Portrait Page
Now lets open the pages and edit the default text on the pages.
Open MainPage.xaml and edit the text to as shown in the image below. Also drag and drop four HypelinkButton onto the MainPage.xaml
Now edit the HyperlinkButtons to point to the proper pages to be navigated. Use the image below to do the same.MainPage.xaml
Now open about.xaml, contact.xaml, corporateoffice.xaml, satelliteoffice.xaml and edit the headings.

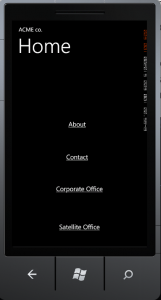

Now run the application and you will see the screen as below. You can also navigate to different screens.
You can download the full source code here
Please remember to leave your feedback or appreciations or questions. Thanks
